Wilson Saimaa
01.04.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- RMS Saimaa
- IMO No
- 9313694
- Call sign
- 8PBH7
- Build
- 2005
- Flag
- BRB
- Builders
- Classification
- DNV / 100 A5 M E2 G MC E2 AUT
- Length oa
- 80.1
- Breadth mld
- 12.5
- Depth mld
- 5.7
- Draft summer
- 4.48
- Deadweight summer draft
- 2634
- Draft winter
- 4.39
- Deadweight winter draft
- 2544
- Gross tonnage
- 2069
- Net tonnage
- 827
- Immersion(load draft) TPC
- 9.3
- Mean draft of ship in heavy ballast
- 3.1
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 50.4
- Hatch type
- System TTS multifold crocodile
- Container (TEU) capacity Hold / Deck
- 0 / 0
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.6
- Max permissible load on tanktop, mt/sqm
- 15
- Max air draft - 1
- 0
- Max air draft - 2
- 0
- Water ballast capacity
- 1205
- MGO Capacity (Cbm)
- 140
- IFO Capacity (Cbm)
- 0
- Service speed, knots
- 0
- A60
- No
- Bow thruster
- 130 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- No
- Keel to top antenna fwd/aft
- 18.55 / 24.1
- Keel to top antenna fwd/aft - lowered mast
- 12.65 / 14.2
Remarks:
2 moveable bulkheads, 7 positions Stanchions (40) for timber

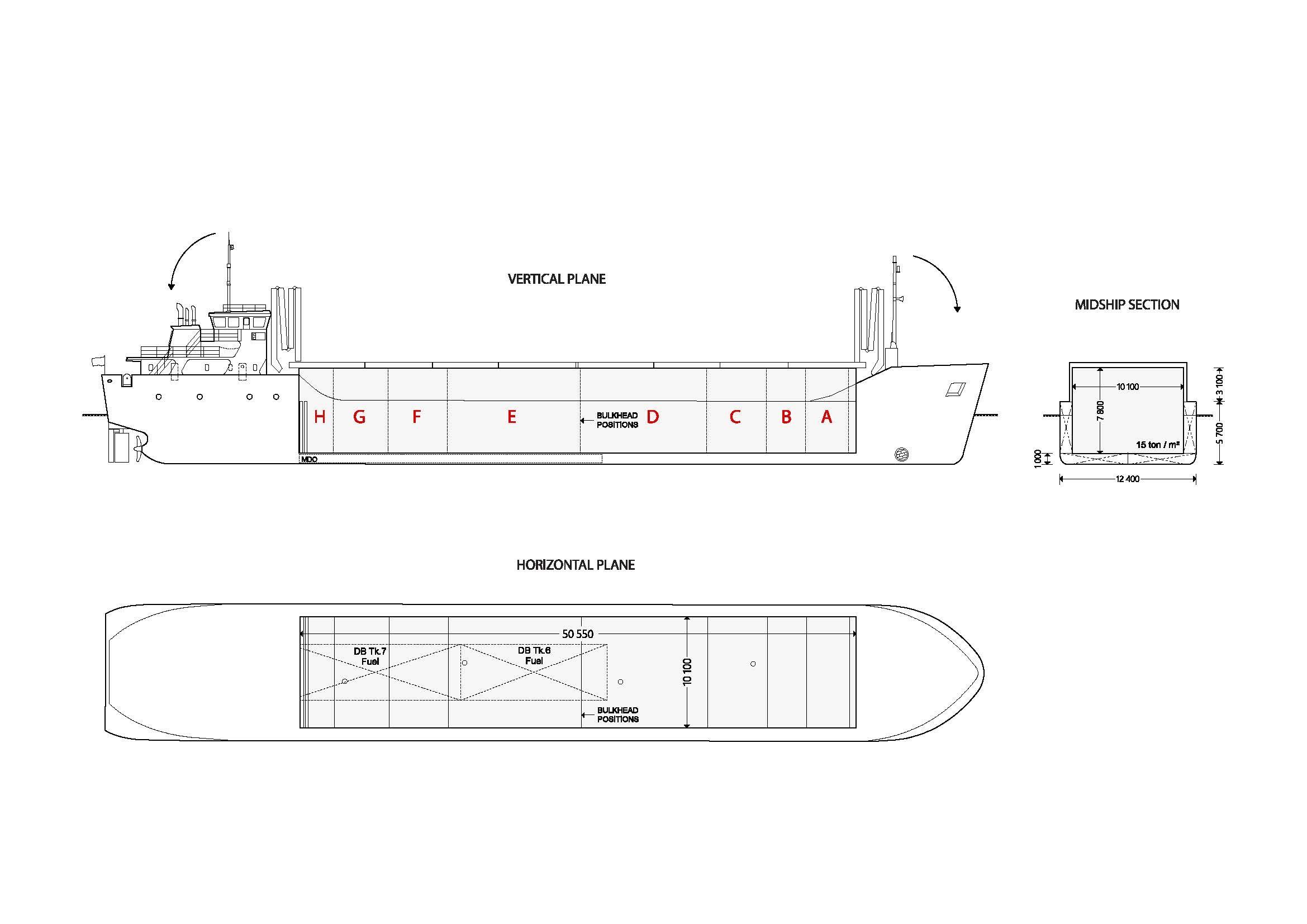

| Htch# | a | b | c | d | e | f | g |
|---|---|---|---|---|---|---|---|
| 1 | 5.72 | 4.34 | 7.6 | 1.6 | 0.7 | 3.12 | 49.42 x 10.08 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 3686 | 130170 | 3821 | 134937 | 49.42 x 40.08 x 7.8 |
