Wilson Pori

16.11.2023

If not otherwise specified:
Dist/Dim in meters
Weights in m.tones

All details given in good faith without any guarantee

Ex.
SP Venture, Arklow Venture
IMO No
9201839
Call sign
LAOC8
Build
1999
Flag
NIS
Builders
Classification
DNV - 1A General dry cargo ship Container E0
Length oa
89.75
Breadth mld
13.9
Depth mld
7.2
Draft summer
6.372
Deadweight summer draft
4966
Draft winter
6.24
Deadweight winter draft
4818
Gross tonnage
2829
Net tonnage
1548
Immersion(load draft) TPC
0
Mean draft of ship in heavy ballast
0
Distance from forward end of No. 1 hatch to aft end of last hatch
0
Hatch type
Pontoon
Container (TEU) capacity Hold / Deck
111 / 76
Max permissible load on deck/hatch-cover, mt/sqm
0
Max permissible load on tanktop, mt/sqm
15
Max air draft - 1
0
Max air draft - 2
0
Water ballast capacity
1860
MGO Capacity (Cbm)
0
IFO Capacity (Cbm)
0
Service speed, knots
0
A60
No
Bow thruster
150 kW, Yes
Boxed
No
Open hatch
No
Rhine fitted
No
Ammonium Nitrate fitted
Yes
FeSi fitted
Yes
Keel to top antenna fwd/aft
0 / 0
Keel to top antenna fwd/aft - lowered mast
0 / 0

Remarks:

2 movable bulkheads

Htch# a b c d e f g h
1 6.38 3.55 1.3 1.6 1.3 0.9 62.88 x 11 7 x 595

a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm

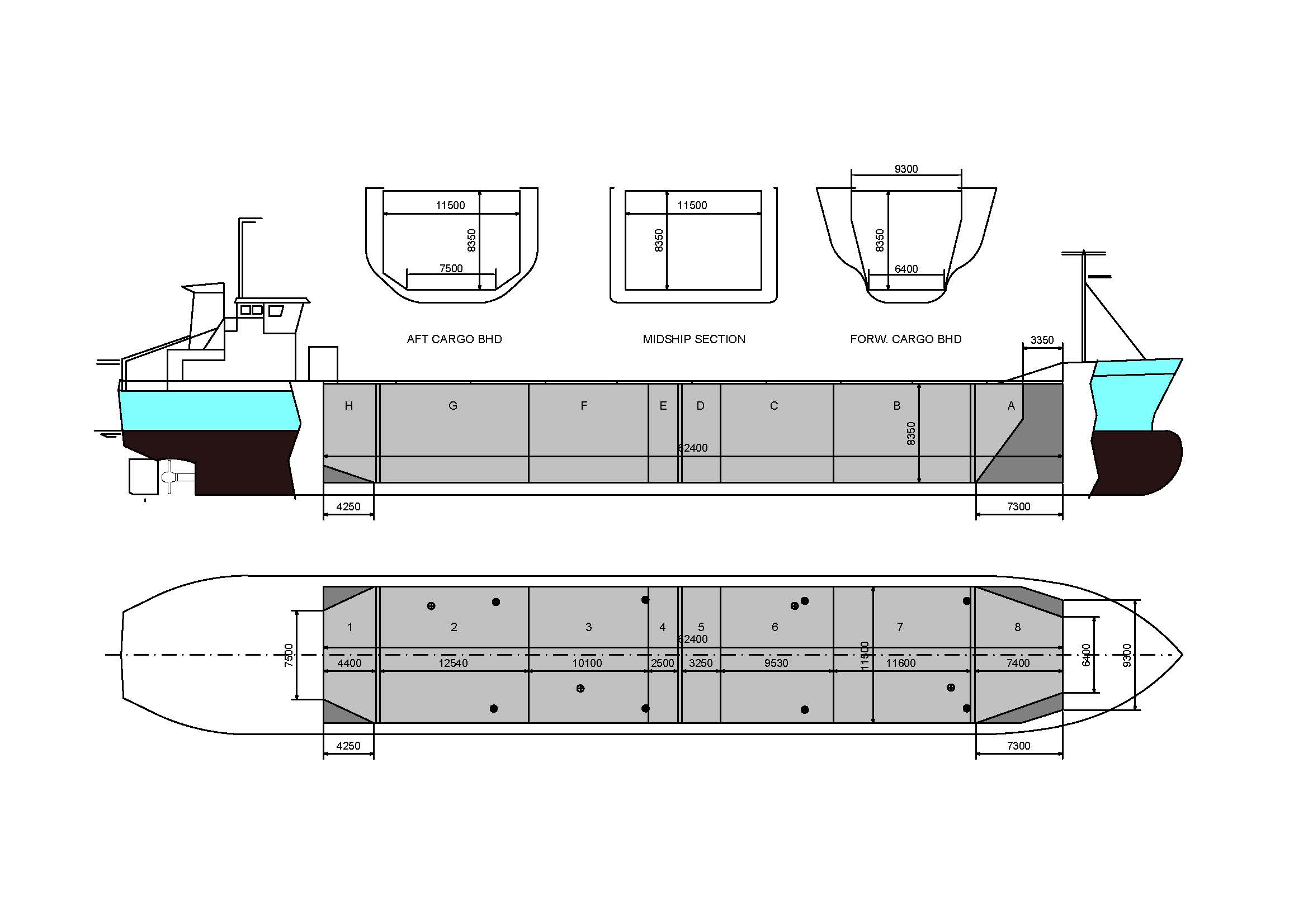

Bale Grain
Hold# cbm cbft cbm cbft Hold dimensions
1 5582 197126 5582 197126 62.88 x 11 x 8.35
Compartments
a b c d e f g
1095 949 746 644 915 1276 856
Communication
Email Wilson Pori <w-pori@wilsonfleet.no>
Phone 47||90506684
SatPhone
