Wilson Pola

If not otherwise specified:
Dist/Dim in meters
Weights in m.tones

All details given in good faith without any guarantee

Ex.: Arklow Rouge
IMO No: 9344526
Call sign: LAVT8
Build: 2007
Flag: NIS

Builders
Classification: BV
Length oa: 89.99
Breadth mld: 14
Depth mld: 7.15
Draft summer: 6.1
Deadweight summer draft: 4979
Draft winter: 5.96
Deadweight winter draft: 4821
Gross tonnage: 2999
Net tonnage: 1639
Immersion(load draft) TPC: 11.57
Mean draft of ship in heavy ballast: 3.45
Distance from forward end of No. 1 hatch to aft end of last hatch: 62.4
Hatch type: Pontoon, Gantry Crane
Container (TEU) capacity Hold / Deck: 102 / 36
Max permissible load on deck/hatch-cover, mt/sqm: 1.5
Max permissible load on tanktop, mt/sqm: 15
Max air draft - 1: 20.4
Max air draft - 2: 21.5
Water ballast capacity: 1945
MGO Capacity (Cbm): 192
IFO Capacity (Cbm): 0
Service speed, knots: 11
A60: Yes
Bow thruster: 250 kW, Yes
Boxed: No
Open hatch: Yes
Rhine fitted: No
Ammonium Nitrate fitted: Yes
FeSi fitted: No
Keel to top antenna fwd/aft: 21.08 / 24.5
Keel to top antenna fwd/aft - lowered mast: 0 / 0

Remarks:

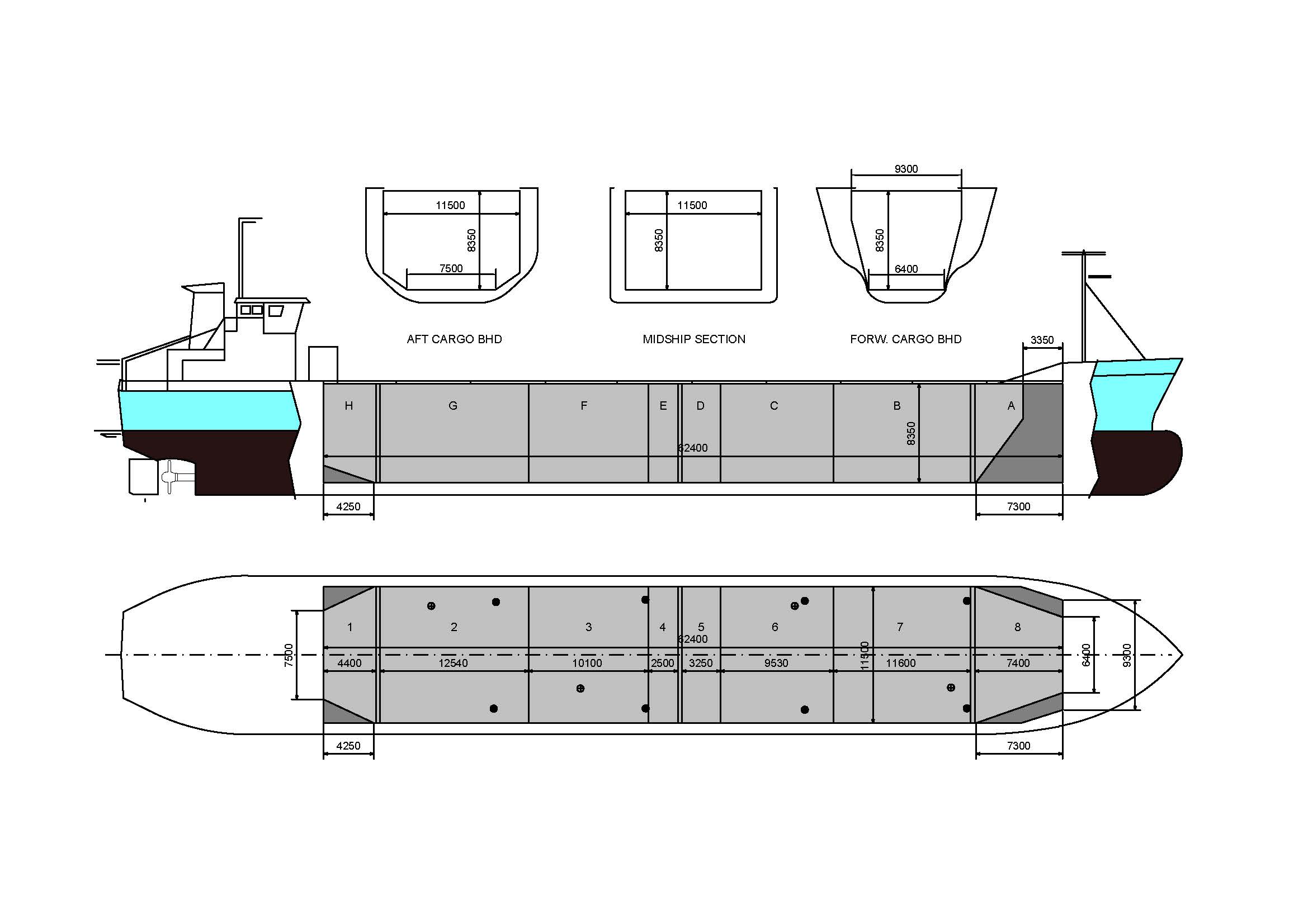

2 Movable bulkheads may be placed in 9 positions Lenght with bulkheads stowed fwd 54,40m Lenght with bulkheads stowed aft 57,50m Lenght with 1 bulkhead stowed fwd and aft 50,50m Bulkheads between cargo hold and machinery spaces of category A are insulated to A-60 standard.

Htch#	b	c	f	g	h
1	5.1	8.35	2.31	62.4 x 11.5	4 x 470

a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm

Hold#	cbm	cbft	cbm	cbft	Hold dimensions
	Bale		Grain
1	5873	207403	5873	207403	62.4 x 11.5 x 8.35
