Wilson Plymouth
02.07.2024
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- Arklow Rainbow
- IMO No
- 9344497
- Call sign
- LATZ8
- Build
- 2006
- Flag
- NIS
- Builders
- Classification
- BV I * HULL * MACH General cargo ship Heavy cargo -heavycargo(105kN/M2) -nonhomload Unrestricted navigation * AUT-UMS , MON-SHAFT , STRENGTHBOTTOM
- Length oa
- 89.99
- Breadth mld
- 14
- Depth mld
- 7.15
- Draft summer
- 6.1
- Deadweight summer draft
- 4868
- Draft winter
- 5.973
- Deadweight winter draft
- 4721
- Gross tonnage
- 2999
- Net tonnage
- 1639
- Immersion(load draft) TPC
- 11.5
- Mean draft of ship in heavy ballast
- 3.45
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 62.4
- Hatch type
- Pontoon, Gantry Crane
- Container (TEU) capacity Hold / Deck
- 102 / 48
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.5
- Max permissible load on tanktop, mt/sqm
- 15
- Max air draft - 1
- 20.6
- Max air draft - 2
- 21.5
- Water ballast capacity
- 1945
- MGO Capacity (Cbm)
- 192
- IFO Capacity (Cbm)
- 0
- Service speed, knots
- 11
- A60
- Yes
- Bow thruster
- 250 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- Yes
- Keel to top antenna fwd/aft
- 21.08 / 0
- Keel to top antenna fwd/aft - lowered mast
- 0 / 0
Remarks:
2 Movable bulkheads - 9 positions Bulkheads between cargo hold and machinery spaces of category A are insulated to A-60 standard.
| Htch# | a | b | c | d | e | f | g | h |
|---|---|---|---|---|---|---|---|---|
| 1 | 6 | 3.45 | 8.35 | 1.5 | 1.25 | 2.3 | 62.4 x 11.5 | 4 x 470 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 5849 | 206555 | 5849 | 206555 | 62.4 x 11.5 x 8.35 |

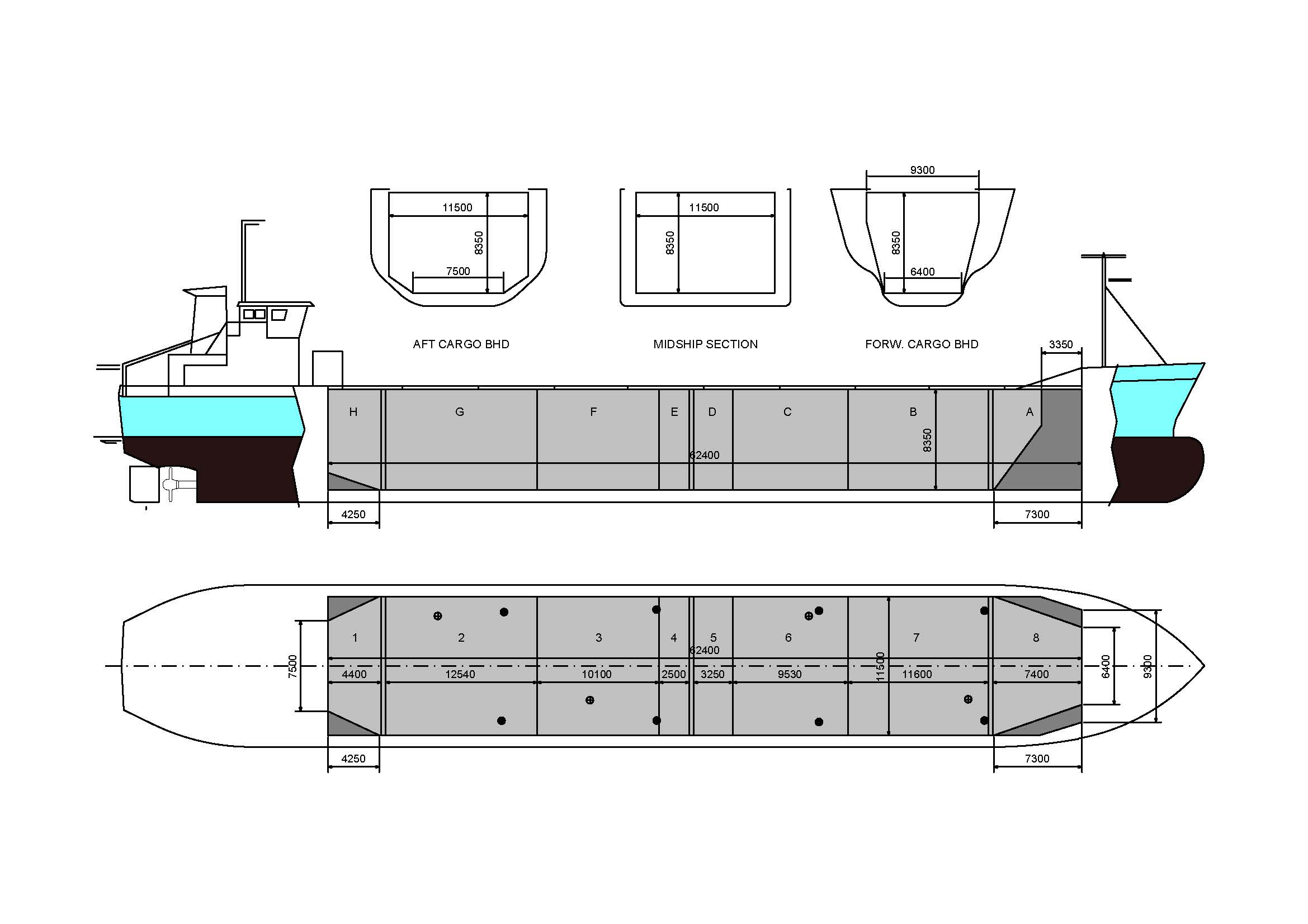

| Compartments | |||||||
|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | h |
| 633 | 1117 | 917 | 312 | 240 | 957 | 1207 | 397 |
