Wilson Onega
20.05.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- Nina
- IMO No
- 9156199
- Call sign
- 8PAQ8
- Build
- 1997
- Flag
- BRB
- Builders
- Classification
- DNV GL / 100 A5 E2 General cargo ship Equipped for carrige of containers DBC DG Strenghtened for heavy cargo MC E2 AUT
- Length oa
- 82.5
- Breadth mld
- 11.35
- Depth mld
- 6.1
- Draft summer
- 4.798
- Deadweight summer draft
- 2498
- Draft winter
- 4.689
- Deadweight winter draft
- 2398
- Gross tonnage
- 1864
- Net tonnage
- 938
- Immersion(load draft) TPC
- 8.85
- Mean draft of ship in heavy ballast
- 3.1
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 53.7
- Hatch type
- Kvaerner Multifold Crocodile
- Container (TEU) capacity Hold / Deck
- 69 / 36
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.3
- Max permissible load on tanktop, mt/sqm
- 12
- Max air draft - 1
- 22.4
- Max air draft - 2
- 13.9
- Water ballast capacity
- 1059
- MGO Capacity (Cbm)
- 141
- IFO Capacity (Cbm)
- 0
- Service speed, knots
- 9
- A60
- Yes
- Bow thruster
- 255 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- Yes
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- Yes
- Keel to top antenna fwd/aft
- 19.6 / 25.4
- Keel to top antenna fwd/aft - lowered mast
- 11.8 / 15.76
Remarks:
NAABSA A 60 Two movable bulkheads

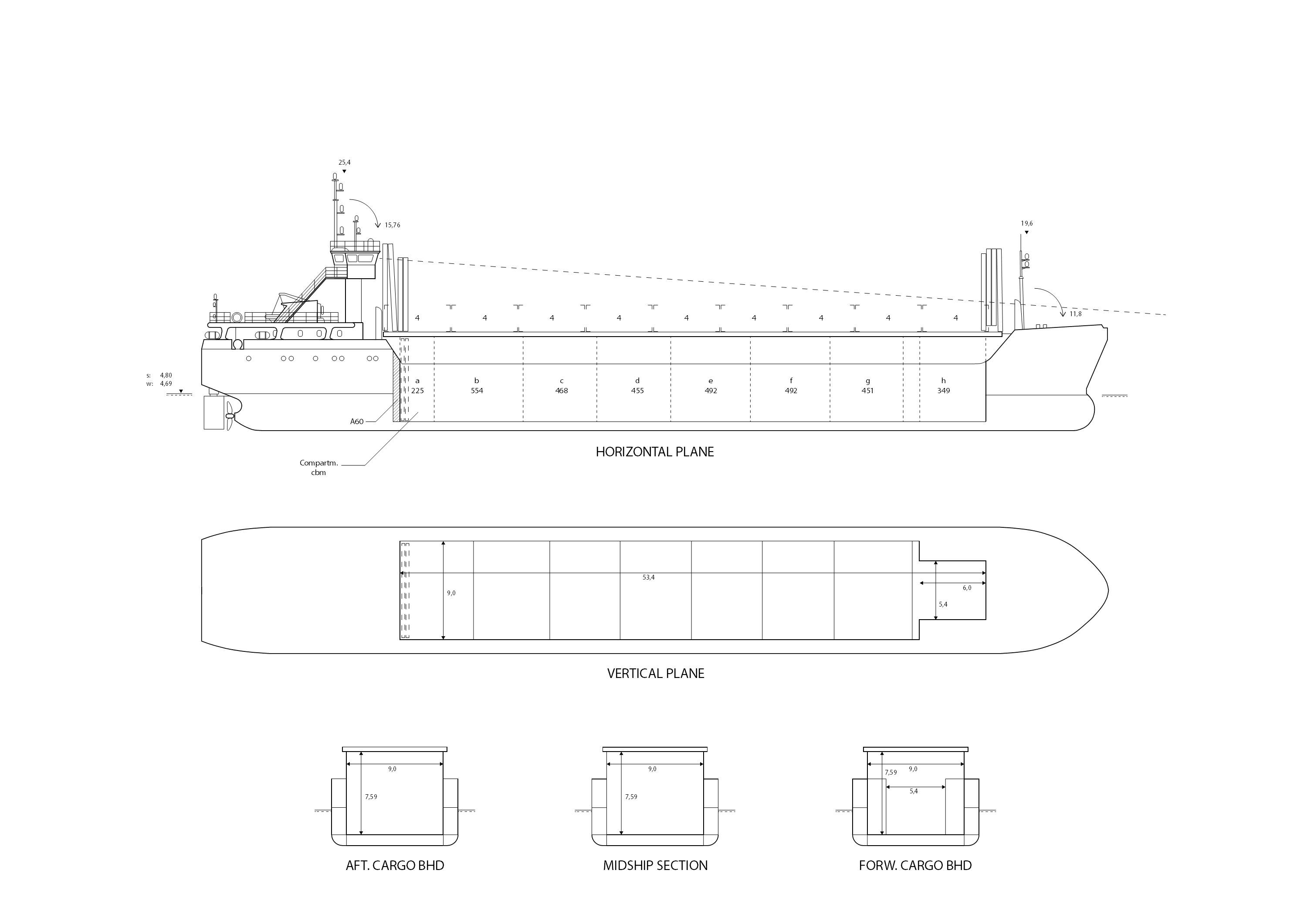

| Htch# | a | b | c | d | e | f | g |
|---|---|---|---|---|---|---|---|
| 1 | 5.55 | 3.81 | 7.59 | 1.3 | 1.04 | 2.5 | 51.4 x 9 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 3436 | 121352 | 3436 | 121352 | 53.4 x 9 x 7.59 |
| Compartments | |||||||
|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | h |
| 225 | 554 | 468 | 455 | 492 | 492 | 451 | 349 |
