Wilson Monsoon
20.05.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- Kristin D
- IMO No
- 9163582
- Call sign
- 8PAR3
- Build
- 1997
- Flag
- BRB
- Builders
- Classification
- DNV GL / ICE100 A5 E, General cargo ship Equipped for carriage of containers SOLAS-II-2,Reg.19 Strengthened for heavy cargo, MC E AUT
- Length oa
- 90.6
- Breadth mld
- 13.75
- Depth mld
- 5.576
- Draft summer
- 4.309
- Deadweight summer draft
- 2780
- Draft winter
- 4.22
- Deadweight winter draft
- 2681
- Gross tonnage
- 2035
- Net tonnage
- 1168
- Immersion(load draft) TPC
- 10.49
- Mean draft of ship in heavy ballast
- 3.02
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 62.46
- Hatch type
- MacGregor Multifold Crocodile
- Container (TEU) capacity Hold / Deck
- 72 / 133
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.6
- Max permissible load on tanktop, mt/sqm
- 12
- Max air draft - 1
- 30.9
- Max air draft - 2
- 25.45
- Water ballast capacity
- 1275
- MGO Capacity (Cbm)
- 240
- IFO Capacity (Cbm)
- 0
- Service speed, knots
- 10
- A60
- Yes
- Bow thruster
- 220 kW, Yes
- Boxed
- No
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- No
- Keel to top antenna fwd/aft
- 28.85 / 34.5
- Keel to top antenna fwd/aft - lowered mast
- 0 / 0
Remarks:

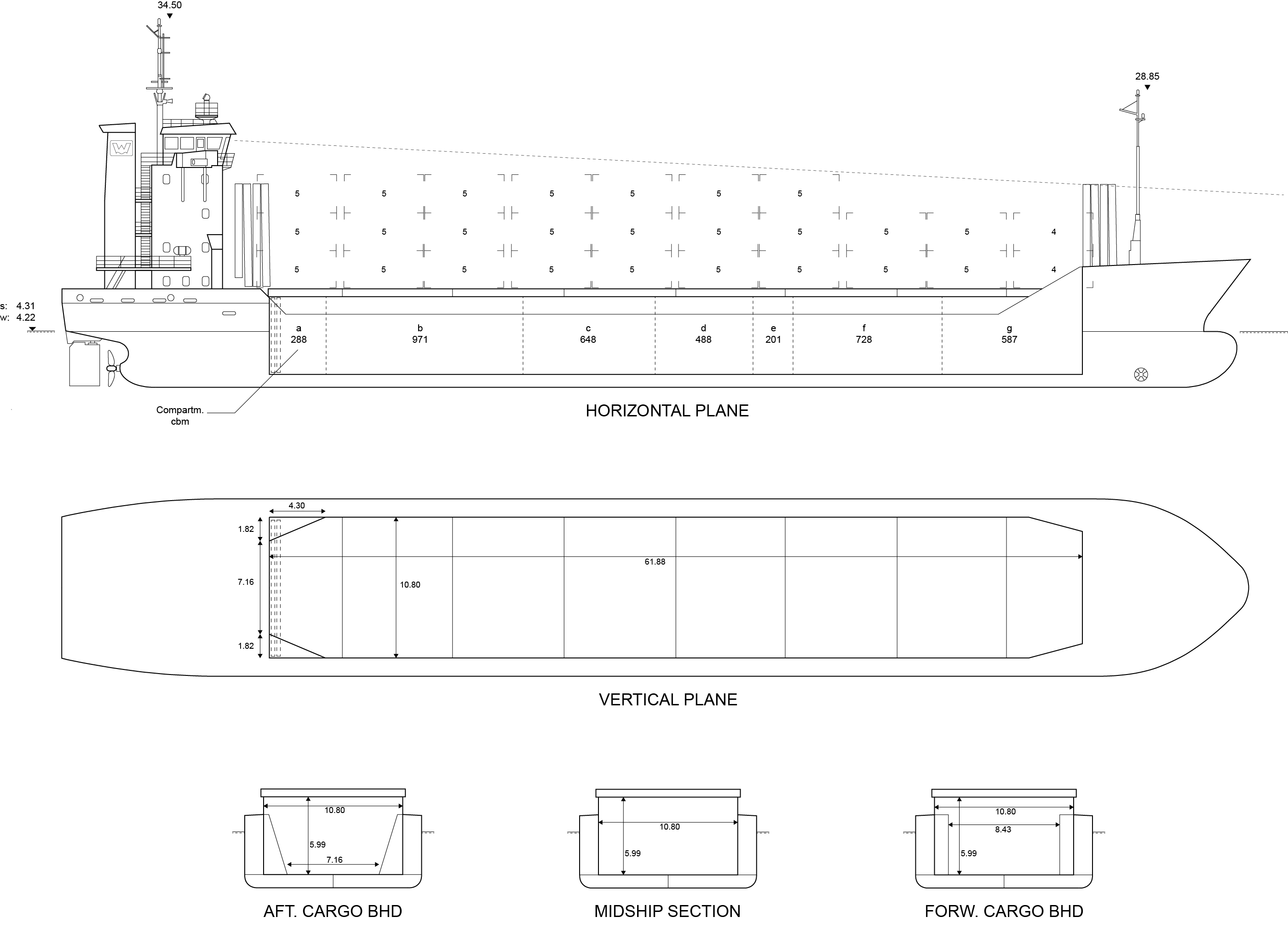

Two moveable bulkheads
| Htch# | a | b | c | d | e | f | g |
|---|---|---|---|---|---|---|---|
| 1 | 3.75 | 2.461 | 5.995 | 1.6 | 0.21 | 1.58 | 61.875 x 10.8 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 3922 | 138504 | 3922 | 138504 | 61.875 x 10.8 x 5.995 |
| Compartments | ||||||
|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g |
| 288 | 971 | 648 | 488 | 201 | 728 | 587 |
| Communication | |
|---|---|
| w-monsoon@wilsonfleet.no | |
| Phone | 47||90943788 Mobile |
| SatPhone | 47||85 290 061 V-Sat |
