Wilson Holla
26.07.2023
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- Hanseatic Scout
- IMO No
- 9229130
- Call sign
- 8PAO7
- Build
- 2002
- Flag
- BRB
- Builders
- Classification
- DNV GL / 100 A5 E2 General cargo ship Equipped for carriage of containers DBC SOLAS-II-2,Reg.19 G Strenghtened for heavy cargo MC E2 AUT
- Length oa
- 89.25
- Breadth mld
- 13.4
- Depth mld
- 7.15
- Draft summer
- 6.23
- Deadweight summer draft
- 4345
- Draft winter
- 6.1
- Deadweight winter draft
- 4204
- Gross tonnage
- 2896
- Net tonnage
- 1613
- Immersion(load draft) TPC
- 10.9
- Mean draft of ship in heavy ballast
- 3.7
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 63
- Hatch type
- Container (TEU) capacity Hold / Deck
- 112 / 96
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.6
- Max permissible load on tanktop, mt/sqm
- 15
- Max air draft - 1
- 25.3
- Max air draft - 2
- 23.3
- Water ballast capacity
- 1563
- MGO Capacity (Cbm)
- 240
- IFO Capacity (Cbm)
- 0
- Service speed, knots
- 11
- A60
- Yes
- Bow thruster
- 250 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- No
- Keel to top antenna fwd/aft
- 24 / 29
- Keel to top antenna fwd/aft - lowered mast
- 13.5 / 27
Remarks:

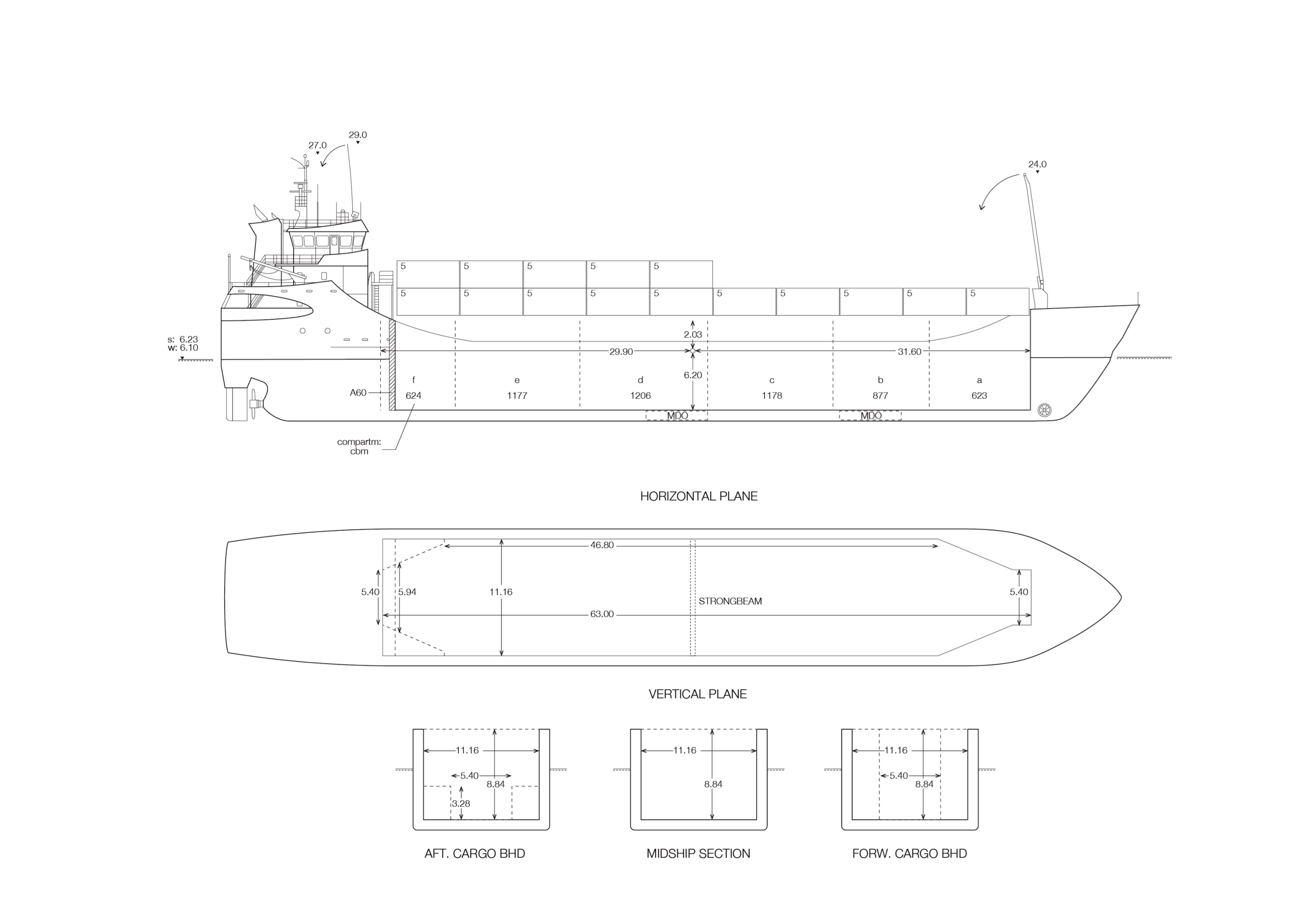

2 Moveable bulkhead, 5 positions.
| Htch# | a | b | c | d | e | g |
|---|---|---|---|---|---|---|
| 1 | 5.95 | 3.58 | 8.8 | 1.6 | 1.112 | 63 x 11.16 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 5712 | 201726 | 5712 | 201726 | 63 x 11.16 x 8.8 |
| Compartments | |||||
|---|---|---|---|---|---|
| a | b | c | d | e | f |
| 623 | 877 | 1178 | 1206 | 1177 | 624 |
