Wilson Hobro

If not otherwise specified:
Dist/Dim in meters
Weights in m.tones

All details given in good faith without any guarantee

Ex.: Hanseatic Trader
IMO No: 9229128
Call sign: 8PAO8
Build: 2001
Flag: BRB

Builders
Classification: DNV GL / 100 A5 E2, General cargo ship Equipped for carriage of containers DBC SOLAS-II-2, Reg.19 Strengthened fo heavy Cargo MC E2 AUT
Length oa: 89.25
Breadth mld: 13.3
Depth mld: 7.865
Draft summer: 6.22
Deadweight summer draft: 4338
Draft winter: 6.08
Deadweight winter draft: 4197
Gross tonnage: 2896
Net tonnage: 1613
Immersion(load draft) TPC: 10.93
Mean draft of ship in heavy ballast: 3.75
Distance from forward end of No. 1 hatch to aft end of last hatch: 63
Hatch type
Container (TEU) capacity Hold / Deck: 106 / 75
Max permissible load on deck/hatch-cover, mt/sqm: 1.6
Max permissible load on tanktop, mt/sqm: 15
Max air draft - 1: 25.3
Max air draft - 2: 0
Water ballast capacity: 1563
MGO Capacity (Cbm): 240
IFO Capacity (Cbm): 0
Service speed, knots: 12
A60: No
Bow thruster: 250 kW, Yes
Boxed: No
Open hatch: Yes
Rhine fitted: No
Ammonium Nitrate fitted: Yes
FeSi fitted: Yes
Keel to top antenna fwd/aft: 24 / 29
Keel to top antenna fwd/aft - lowered mast: 13.5 / 27

Remarks:

2 Moveable bulkhead, 5 positions. ICE CLASS: E2 at draft of 6.22m E3 at draft up to 5.84m

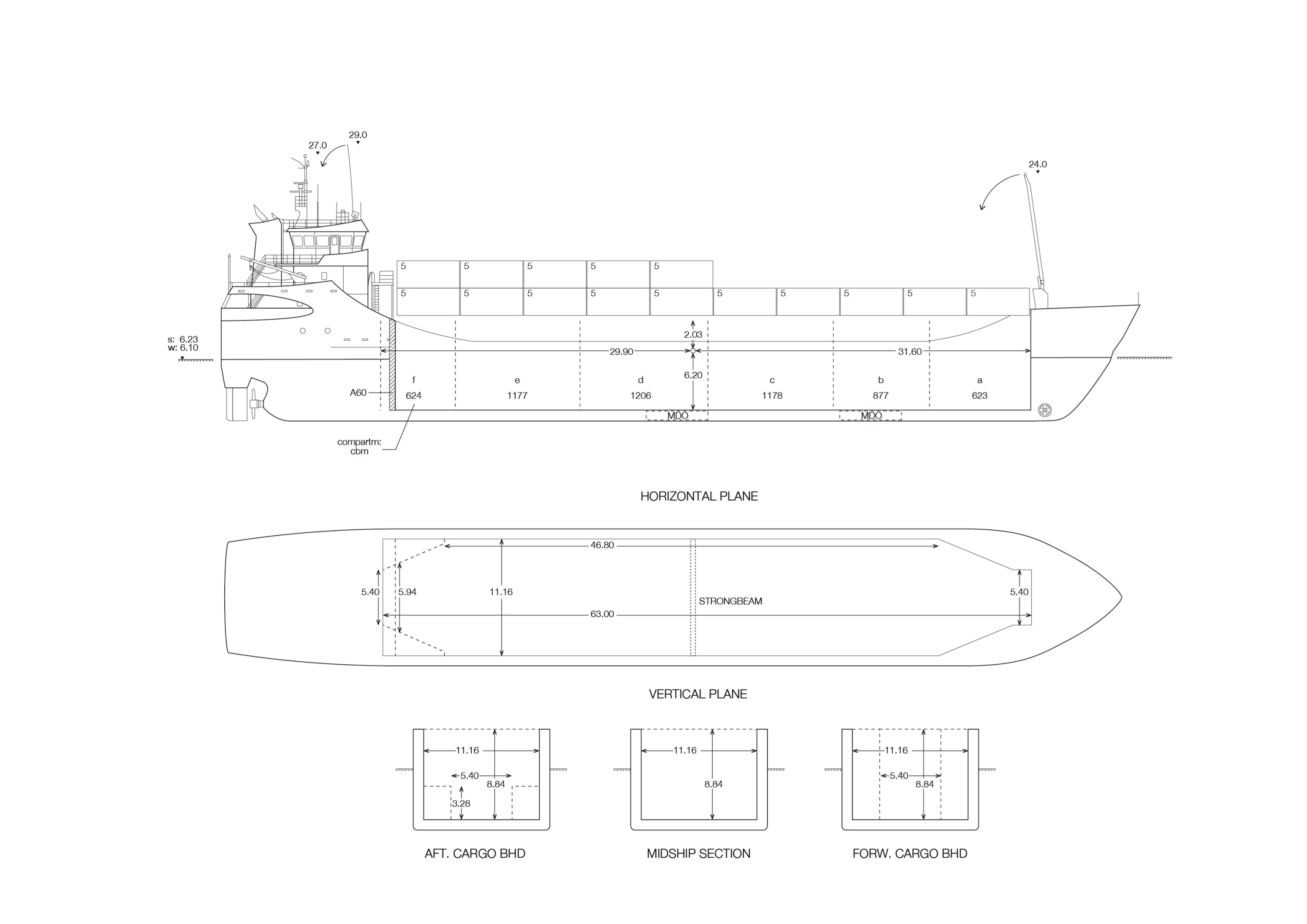

Htch#	a	b	c	d	e	f	g
1	5.95	3.58	1.6	1.12	0.25	1.95	63 x 11.16

a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm

Hold#	cbm	cbft	cbm	cbft	Hold dimensions
	Bale		Grain
1	5808	205090	5808	205090	63 x 11.16 x 8.83

Compartments
a	b	c	d	e	f
623	877	1178	1206	1177	624
