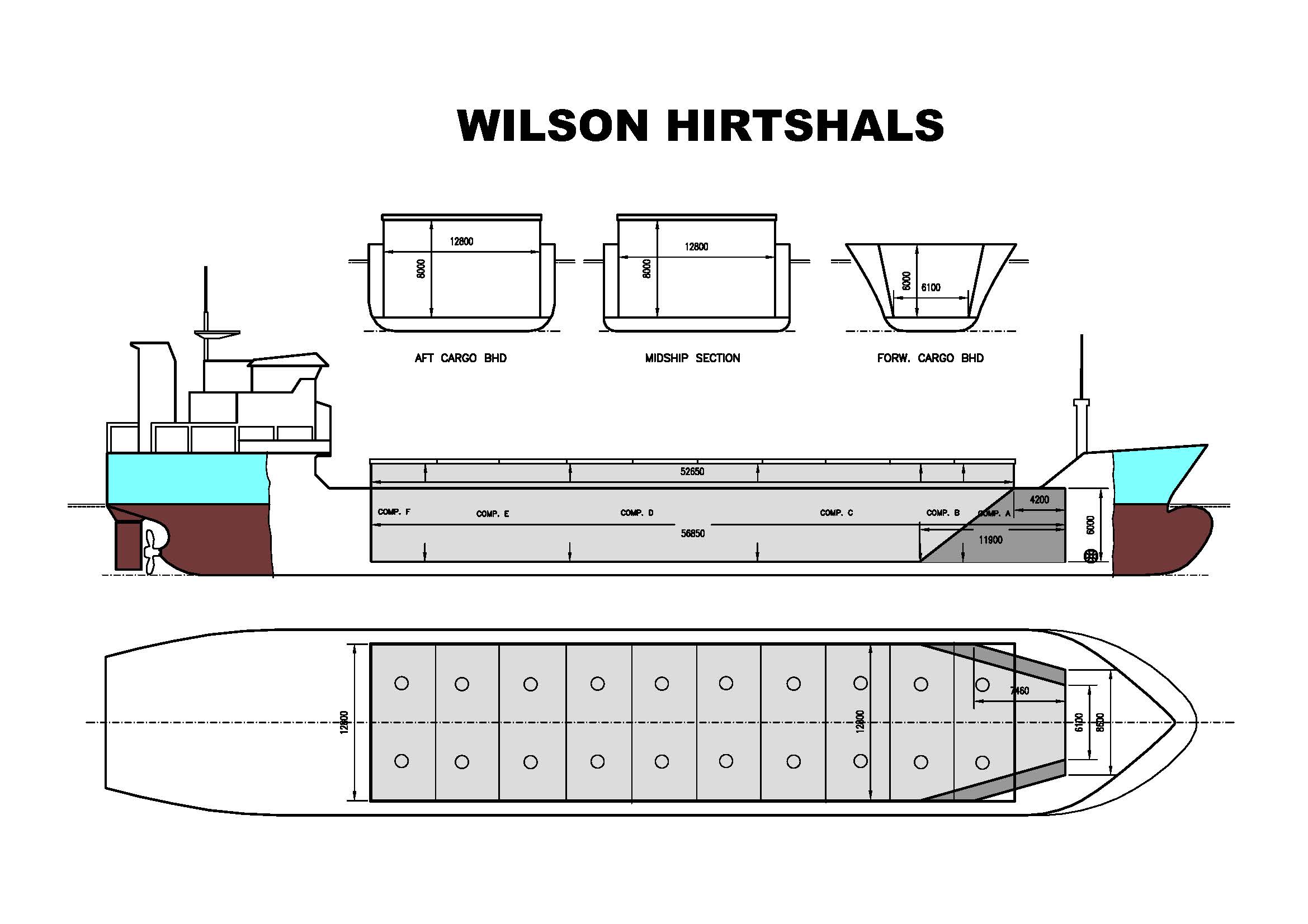

Wilson Hirtshals
27.05.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- Tejo Alges
- IMO No
- 9240251
- Call sign
- 8PNO3
- Build
- 2001
- Flag
- BRB
- Builders
- Classification
- DNV 100 A% E1 General cargo ship with double hull AHTS Equipped for carriage of containers DBC SOLAS-II-2,Reg.19 G Strengthened for heavy cargo MC E1 AUT
- Length oa
- 89.99
- Breadth mld
- 15.2
- Depth mld
- 7.1
- Draft summer
- 5.641
- Deadweight summer draft
- 4247
- Draft winter
- 5.523
- Deadweight winter draft
- 4129
- Gross tonnage
- 2999
- Net tonnage
- 1503
- Immersion(load draft) TPC
- 11.63
- Mean draft of ship in heavy ballast
- 3.83
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 54.2
- Hatch type
- Pontoon, Gantry Crane
- Container (TEU) capacity Hold / Deck
- 114 / 60
- Max permissible load on deck/hatch-cover, mt/sqm
- 15.7
- Max permissible load on tanktop, mt/sqm
- 12
- Max air draft - 1
- 22
- Max air draft - 2
- 27.7
- Water ballast capacity
- 190989
- MGO Capacity (Cbm)
- 0
- Service speed, knots
- 0
- A60
- No
- Bow thruster
- 220 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- Yes
- Keel to top antenna fwd/aft
- 22 / 27.7
- Keel to top antenna fwd/aft - lowered mast
- 0 / 0
Remarks:
2 movable bulkheads - 5 positions Kingbeam at midship Seperation from engine room by tank(s)/void spaec(s)
| Htch# | a | b | c | e | f | g | h |
|---|---|---|---|---|---|---|---|
| 1 | 5.39 | 3.61 | 8 | 0.5 | 2.15 | 52.7 x 12.8 | 5 x 0 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 5438 | 192041 | 5438 | 192041 | 56.85 x 12.8 x 8 |
| Compartments | |||||
|---|---|---|---|---|---|
| a | b | c | d | e | f |
| 902 | 598 | 1380 | 1223 | 890 | 317 |
