Wilson Eyde
04.08.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- Wilson Farsund
- IMO No
- 9491733
- Call sign
- 8PAE7
- Build
- 2012
- Flag
- BRB
- Builders
- Classification
- DNV GL / 100 A5 E1 Multi-purpose dry cargo ship BWM DBC Solas-II-2 Reg19 G Hatchcoverless Strenghtened for heavy cargo MC E1 AUT
- Length oa
- 89.95
- Breadth mld
- 15.4
- Depth mld
- 7.6
- Draft summer
- 6
- Deadweight summer draft
- 4076
- Draft winter
- 5.875
- Deadweight winter draft
- 3916
- Gross tonnage
- 3621
- Net tonnage
- 1218
- Immersion(load draft) TPC
- 12.75
- Mean draft of ship in heavy ballast
- 4.275
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 24.85
- Hatch type
- Container (TEU) capacity Hold / Deck
- 0 / 0
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.75
- Max permissible load on tanktop, mt/sqm
- 15
- Max air draft - 1
- 22.72
- Max air draft - 2
- 0
- Water ballast capacity
- 2026
- MGO Capacity (Cbm)
- 79.6
- Service speed, knots
- 12
- A60
- No
- Bow thruster
- 250 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- No
- Keel to top antenna fwd/aft
- 31 / 27
- Keel to top antenna fwd/aft - lowered mast
- 21.5 / 0
Remarks:

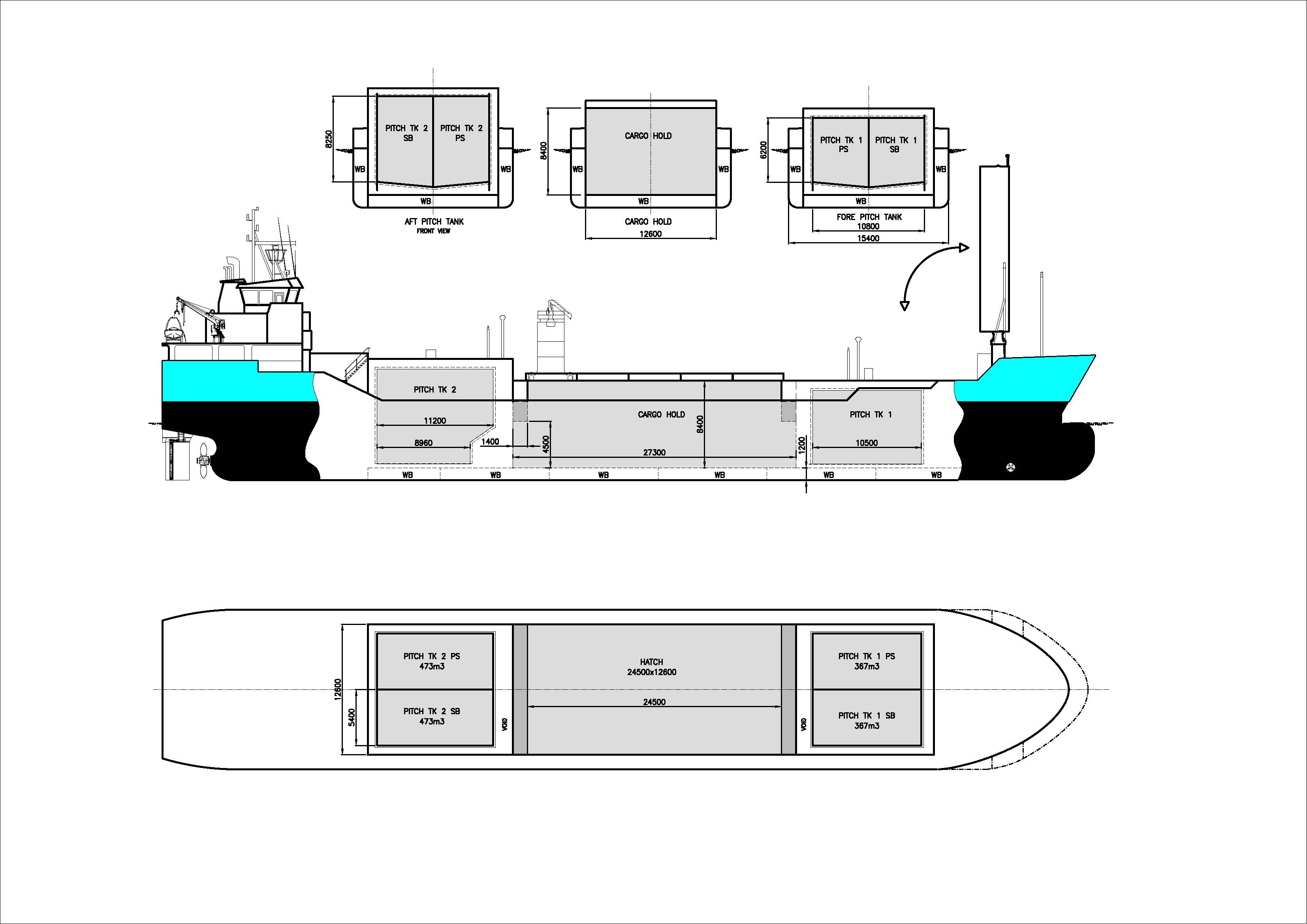

Various - 2 Liquid Pitch tanks + 1 Cargo Hold 2 moveable bulkheads, 6 working positions + 2 storage postions. Pontoon type hatch with 4 pontoons, pontoons can be opened indepentently. Bulkhead dim LxBxH 0,45 x 12,60 x 8,40.
| Htch# | a | b | c | d | e | f | g | h |
|---|---|---|---|---|---|---|---|---|
| 1 | 5.325 | 3.6 | 8.4 | 1.75 | 0.6 | 2 | 54.6 x 12.6 | 14 x 700 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 2744 | 96903 | 2744 | 96903 | 24.85 x 12.6 x 8.4 |
