Wilson Durness
20.05.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- Pollux
- IMO No
- 9390135
- Call sign
- 8PBK8
- Build
- 2008
- Flag
- BRB
- Builders
- Classification
- DNV GL / 100 A5 E Multi-purpose dry cargo ship AHTS Equipped for carriage of containers DBC SOLAS-II-2,Reg.19 G MC E AUT
- Length oa
- 87.9
- Breadth mld
- 12.8
- Depth mld
- 7.1
- Draft summer
- 5.606
- Deadweight summer draft
- 3785
- Draft winter
- 5.489
- Deadweight winter draft
- 3666
- Gross tonnage
- 2452
- Net tonnage
- 1369
- Immersion(load draft) TPC
- 10.1
- Mean draft of ship in heavy ballast
- 3.5
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 56.6
- Hatch type
- Kvaerner Multifold Crocodile
- Container (TEU) capacity Hold / Deck
- 0 / 36
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.6
- Max permissible load on tanktop, mt/sqm
- 15
- Max air draft - 1
- 21.5
- Max air draft - 2
- 0
- Water ballast capacity
- 1340
- MGO Capacity (Cbm)
- 98.3
- IFO Capacity (Cbm)
- 193.3
- Service speed, knots
- 9
- A60
- Yes
- Bow thruster
- 185 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- No
- Keel to top antenna fwd/aft
- 21.8 / 25
- Keel to top antenna fwd/aft - lowered mast
- 11.5 / 19.3
Remarks:
A-60: Located adjacent to engine room bulkhead insulated to A-60 standard 2 moveable bulkheads

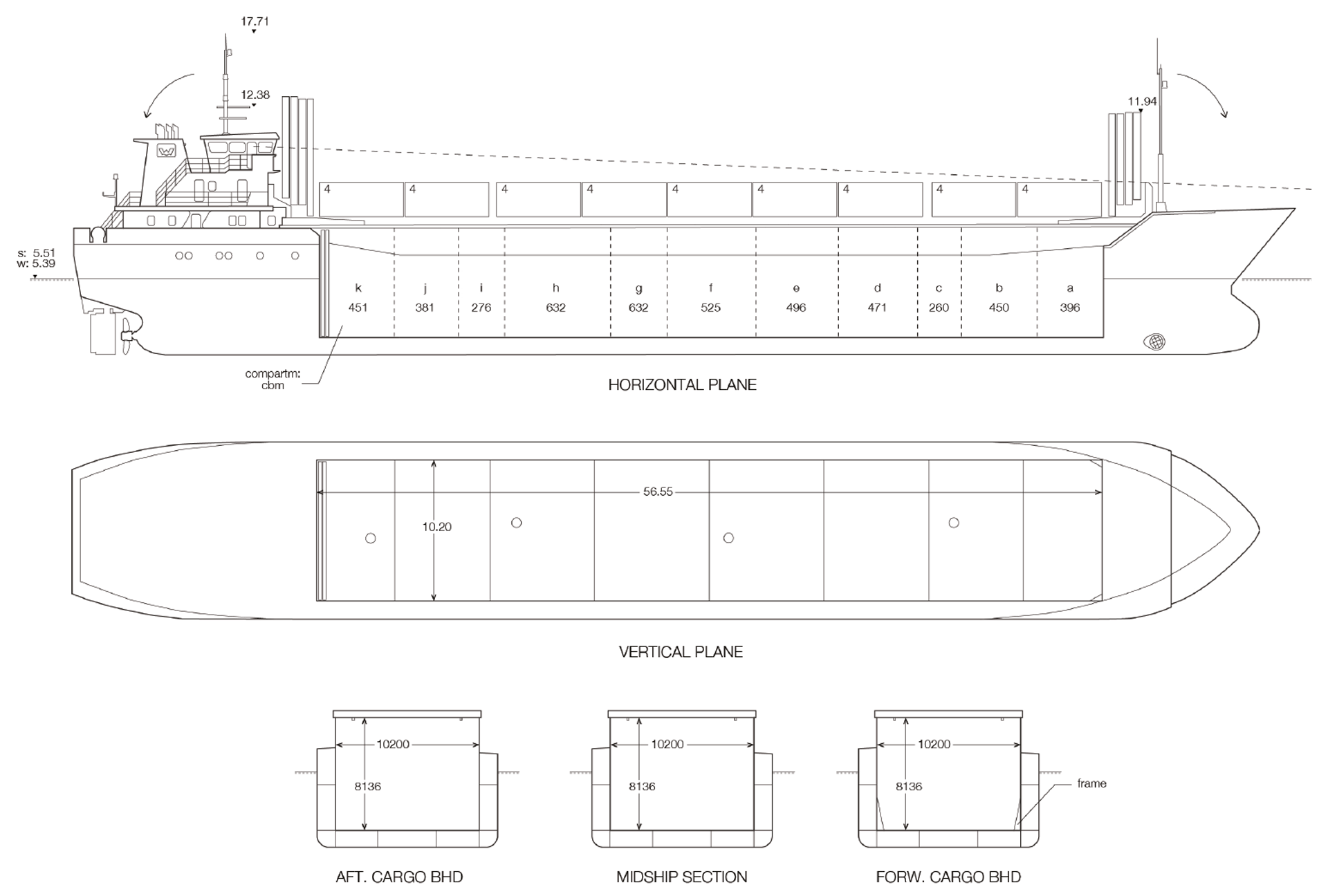

| Htch# | a | b | c | d | e | f | g | h |
|---|---|---|---|---|---|---|---|---|
| 1 | 6.136 | 3.73 | 8.136 | 1.6 | 1.3 | 2.02 | 56.55 x 10.2 | 4 x 600 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 4613 | 162907 | 4613 | 162907 | 56.55 x 10.2 x 8.13 |
| Compartments | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | h | i | j | k |
| 396 | 450 | 260 | 471 | 496 | 525 | 335 | 632 | 276 | 381 | 451 |
