Wilson Dundee
02.07.2024
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- Theseus
- IMO No
- 9390159
- Call sign
- 8PBL2
- Build
- 2009
- Flag
- BRB
- Builders
- Classification
- DNV GL / 100 A5 E G AHTS SOLAS-II-2, Reg.19 DBC MC E AUT
- Length oa
- 87.83
- Breadth mld
- 12.8
- Depth mld
- 7.1
- Draft summer
- 5.606
- Deadweight summer draft
- 3760
- Draft winter
- 5.491
- Deadweight winter draft
- 3642
- Gross tonnage
- 2452
- Net tonnage
- 1369
- Immersion(load draft) TPC
- 10.1
- Mean draft of ship in heavy ballast
- 3.25
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 57.2
- Hatch type
- Kvaerner Multifold crocodile, with hydraulic control
- Container (TEU) capacity Hold / Deck
- 0 / 36
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.6
- Max permissible load on tanktop, mt/sqm
- 15
- Max air draft - 1
- 22
- Max air draft - 2
- 15.7
- Water ballast capacity
- 1340
- MGO Capacity (Cbm)
- 175
- IFO Capacity (Cbm)
- 90
- Service speed, knots
- 9
- A60
- Yes
- Bow thruster
- 185 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- No
- Keel to top antenna fwd/aft
- 20.3 / 25.3
- Keel to top antenna fwd/aft - lowered mast
- 11.5 / 19
Remarks:
* Height in hold: 7.99 m under hatch hinges. Hold length is 55.84 with bulkheads in storage pos. 2 moveable bulkheads with 10 positions and 2 storage positions. Cubic capacity without bulkheads is 4672 cbm. FESI fitted for packaged goods only. A-60: Located adjacent to engine room bulkhead insulated to A-60 standard NAABSA : Check C/P
| Htch# | a | b | c | d | e | f | g | h |
|---|---|---|---|---|---|---|---|---|
| 1 | 6.1 | 3.85 | 8.2 | 1.6 | 1.3 | 2.4 | 56.55 x 10.2 | 4 x 670 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 4588 | 162024 | 4588 | 162024 | 56.55 x 10.2 x 8.13 |

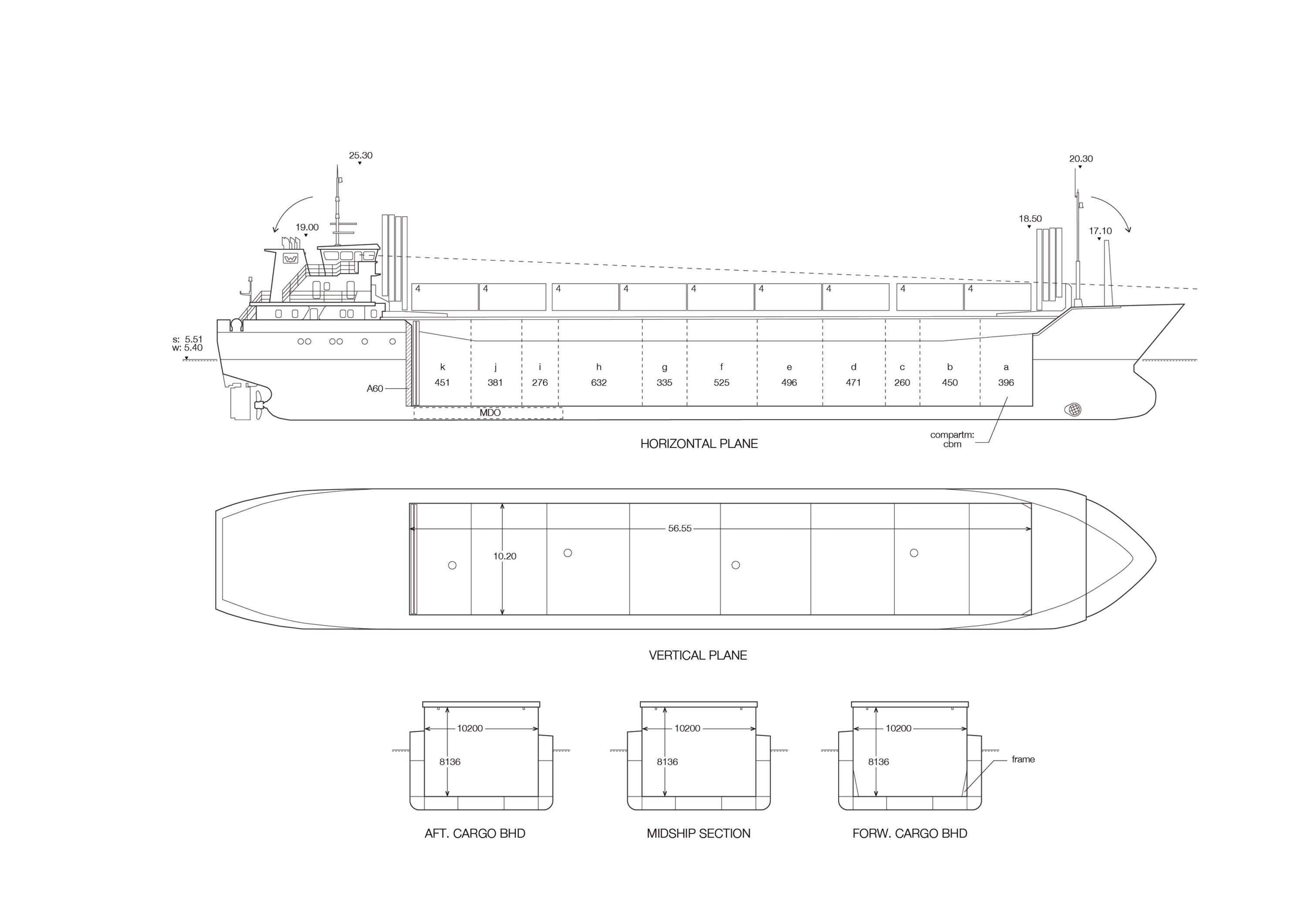

| Compartments | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g | h | i | j | k |
| 396 | 450 | 260 | 471 | 496 | 525 | 335 | 632 | 276 | 381 | 451 |
