Wilson Baerl
20.05.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- RMS Baerl
- IMO No
- 9194311
- Call sign
- 8BPH5
- Build
- 1999
- Flag
- BRB
- Builders
- Classification
- DNV 100 A5 GEneral cargo ship Equipped for carriage of contaners DBC DG MC MAUT
- Length oa
- 99.5
- Breadth mld
- 11.46
- Depth mld
- 6.1
- Draft summer
- 3.92
- Deadweight summer draft
- 2895
- Draft winter
- 3.92
- Deadweight winter draft
- 2895
- Gross tonnage
- 2136
- Net tonnage
- 730
- Immersion(load draft) TPC
- 11.142
- Mean draft of ship in heavy ballast
- 0
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 61.78
- Hatch type
- Pontoon
- Container (TEU) capacity Hold / Deck
- 30 / 60
- Max permissible load on deck/hatch-cover, mt/sqm
- 0
- Max permissible load on tanktop, mt/sqm
- 15
- Max air draft - 1
- 18.3
- Max air draft - 2
- 0
- Water ballast capacity
- 2132
- MGO Capacity (Cbm)
- 0
- IFO Capacity (Cbm)
- 0
- Service speed, knots
- 0
- A60
- No
- Bow thruster
- 205 kW, Yes
- Boxed
- Yes
- Open hatch
- No
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- No
- Keel to top antenna fwd/aft
- 18.6 / 21.75
- Keel to top antenna fwd/aft - lowered mast
- 9.89 / 13.97
Remarks:

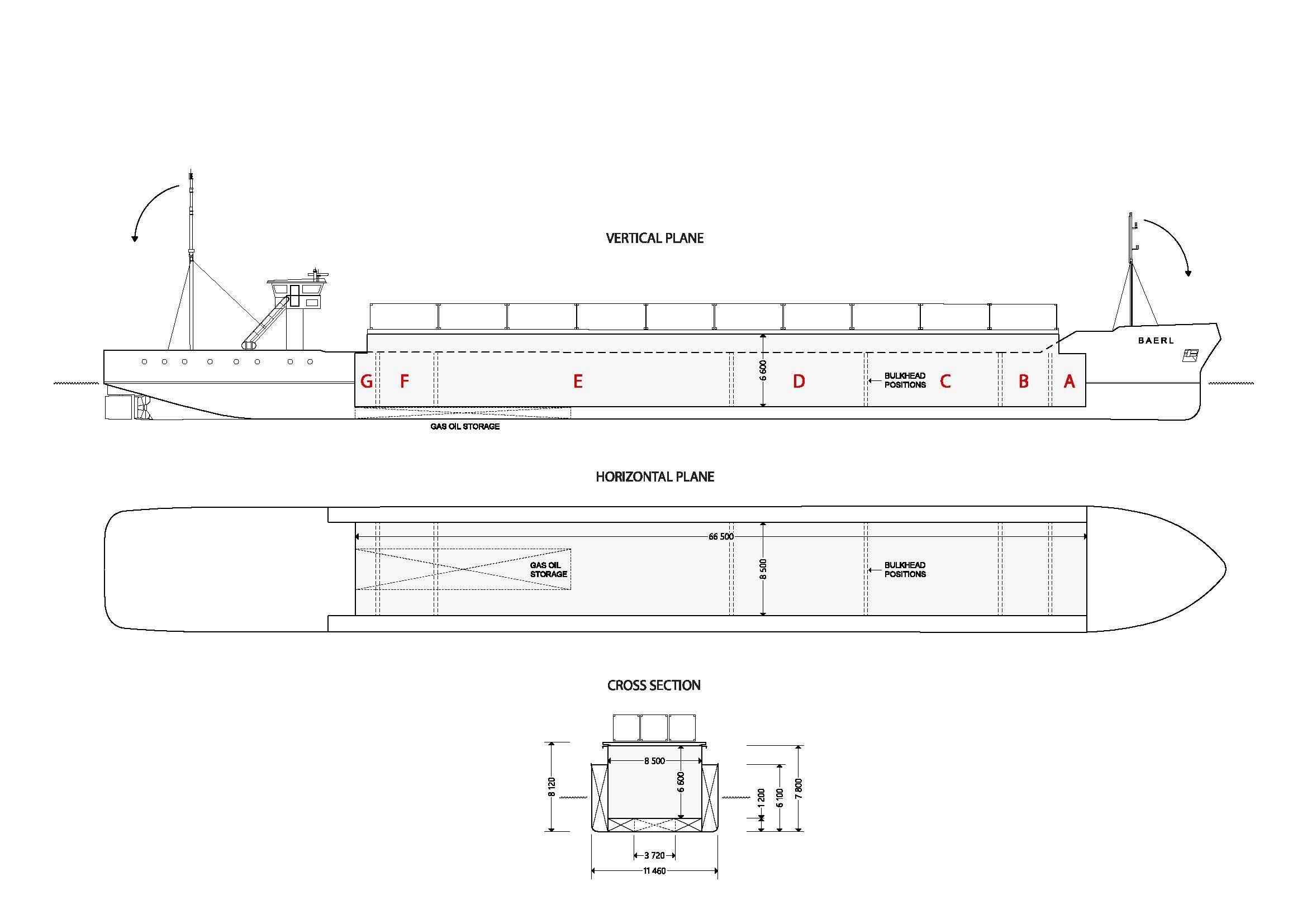

1 movable bulkhead - 6 positions
| Htch# | a | b | c | d | e | f | g |
|---|---|---|---|---|---|---|---|
| 1 | 3.16 | 3.88 | 6.6 | 1.6 | 1.48 | 1.7 | 61.78 x 8.8 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 3549 | 125332 | 3549 | 125332 | 65.48 x 8.5 x 6.6 |
| Compartments | ||||||
|---|---|---|---|---|---|---|
| a | b | c | d | e | f | g |
| 151 | 286 | 673 | 673 | 1481 | 286 | 44 |
