Eems Sun
23.05.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- IMO No
- 9431587
- Call sign
- PHMO
- Build
- 2009
- Flag
- NLD
- Builders
- Classification
- BV I HULL MACH General Cargo Ship-heavycargo, Unrestricted navigation AUT-UMS Strengthbottom
- Length oa
- 87.3
- Breadth mld
- 11.39
- Depth mld
- 5.85
- Draft summer
- 4.26
- Deadweight summer draft
- 2625
- Draft winter
- 4.26
- Deadweight winter draft
- 2625
- Gross tonnage
- 1862
- Net tonnage
- 920
- Immersion(load draft) TPC
- 8.42
- Mean draft of ship in heavy ballast
- 3.05
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 57
- Hatch type
- Pontoon, Gantry Crane
- Container (TEU) capacity Hold / Deck
- 0 / 0
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.6
- Max permissible load on tanktop, mt/sqm
- 12
- Max air draft - 1
- 0
- Max air draft - 2
- 0
- Water ballast capacity
- 1406
- MGO Capacity (Cbm)
- 214.44
- IFO Capacity (Cbm)
- 0
- Service speed, knots
- 0
- A60
- No
- Bow thruster
- 200 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- Yes
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- Yes
- Keel to top antenna fwd/aft
- 22 / 21.2
- Keel to top antenna fwd/aft - lowered mast
- 11.1 / 13.12
Remarks:

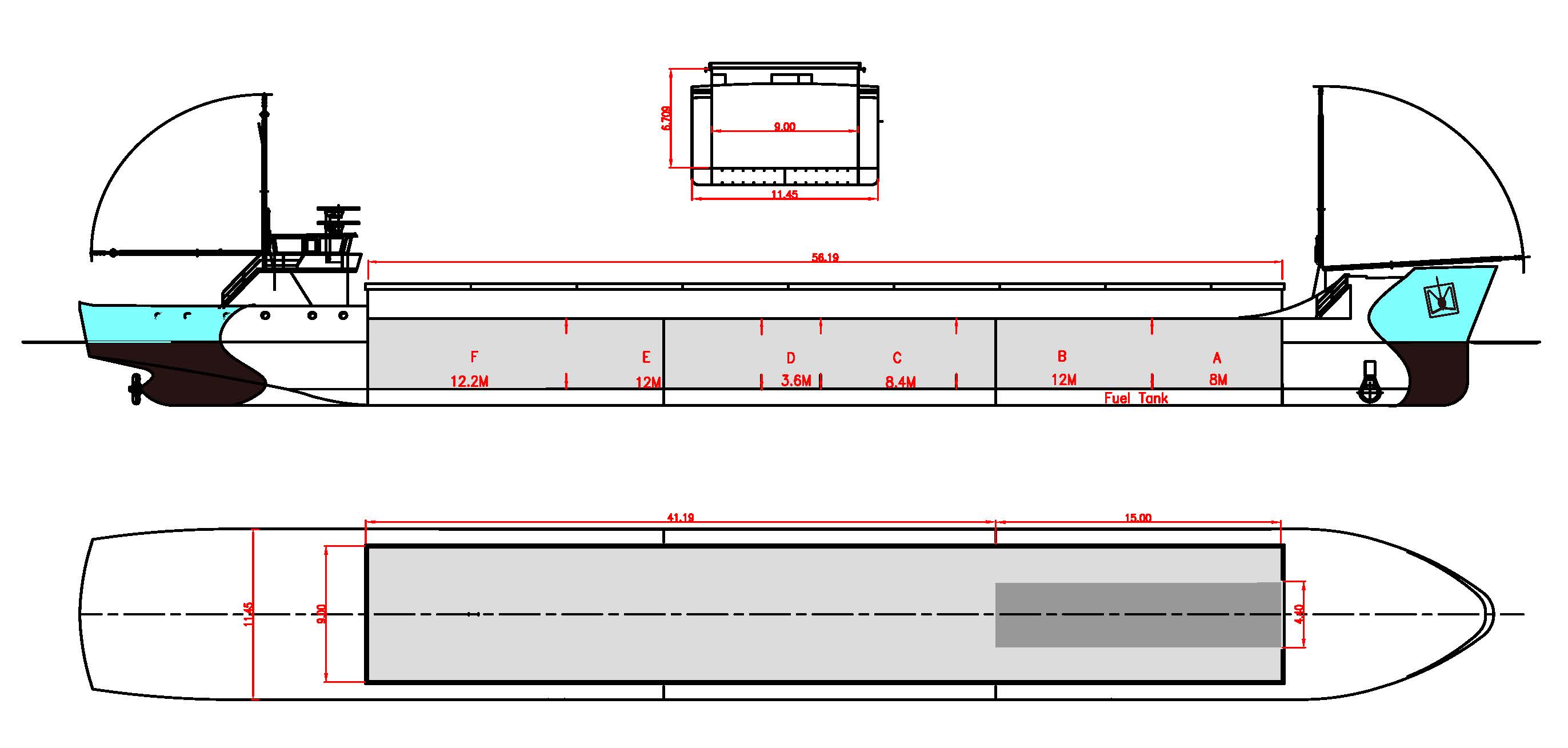

1 Cargo Hold, 2 moveable bulkheads, 6 positions Hatch covers : steel pontoons, operated with own gantry crane
| Htch# | g |
|---|---|
| 1 | 56.19 x 9 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 3384 | 119505 | 3384 | 119505 | 56.2 x 9 x 6.7 |
