H&S Patience

If not otherwise specified:
Dist/Dim in meters
Weights in m.tones

All details given in good faith without any guarantee

Ex.: Eems Star
IMO No: 9421659
Call sign: PHMO
Build: 2008
Flag: NLD

Builders
Classification: BV I HULL MACH General Cargo Ship-heavycargo, Unrestricted navigation AUT-UMS Strengthbottom
Length oa: 87.3
Breadth mld: 11.39
Depth mld: 4.26
Draft summer: 4.26
Deadweight summer draft: 2681
Draft winter: 4.26
Deadweight winter draft: 2681
Gross tonnage: 1862
Net tonnage: 920
Immersion(load draft) TPC: 0
Mean draft of ship in heavy ballast: 0
Distance from forward end of No. 1 hatch to aft end of last hatch: 0
Hatch type: Pontoon, Gantry Crane
Container (TEU) capacity Hold / Deck: 0 / 0
Max permissible load on deck/hatch-cover, mt/sqm: 1.6
Max permissible load on tanktop, mt/sqm: 12
Max air draft - 1: 22
Max air draft - 2: 21.2
Water ballast capacity: 1406
MGO Capacity (Cbm): 0
Service speed, knots: 0
A60: No
Bow thruster: 272 kW, Yes
Boxed: Yes
Open hatch: Yes
Rhine fitted: No
Ammonium Nitrate fitted: No
FeSi fitted: No
Keel to top antenna fwd/aft: 0 / 0
Keel to top antenna fwd/aft - lowered mast: 11.1 / 13.12

Remarks:

Various - Operated by HSW Logistics 1 Cargo Hold, 2 moveable bulkheads, 6 positions Hatch covers : steel pontoons, operated with own gantry crane

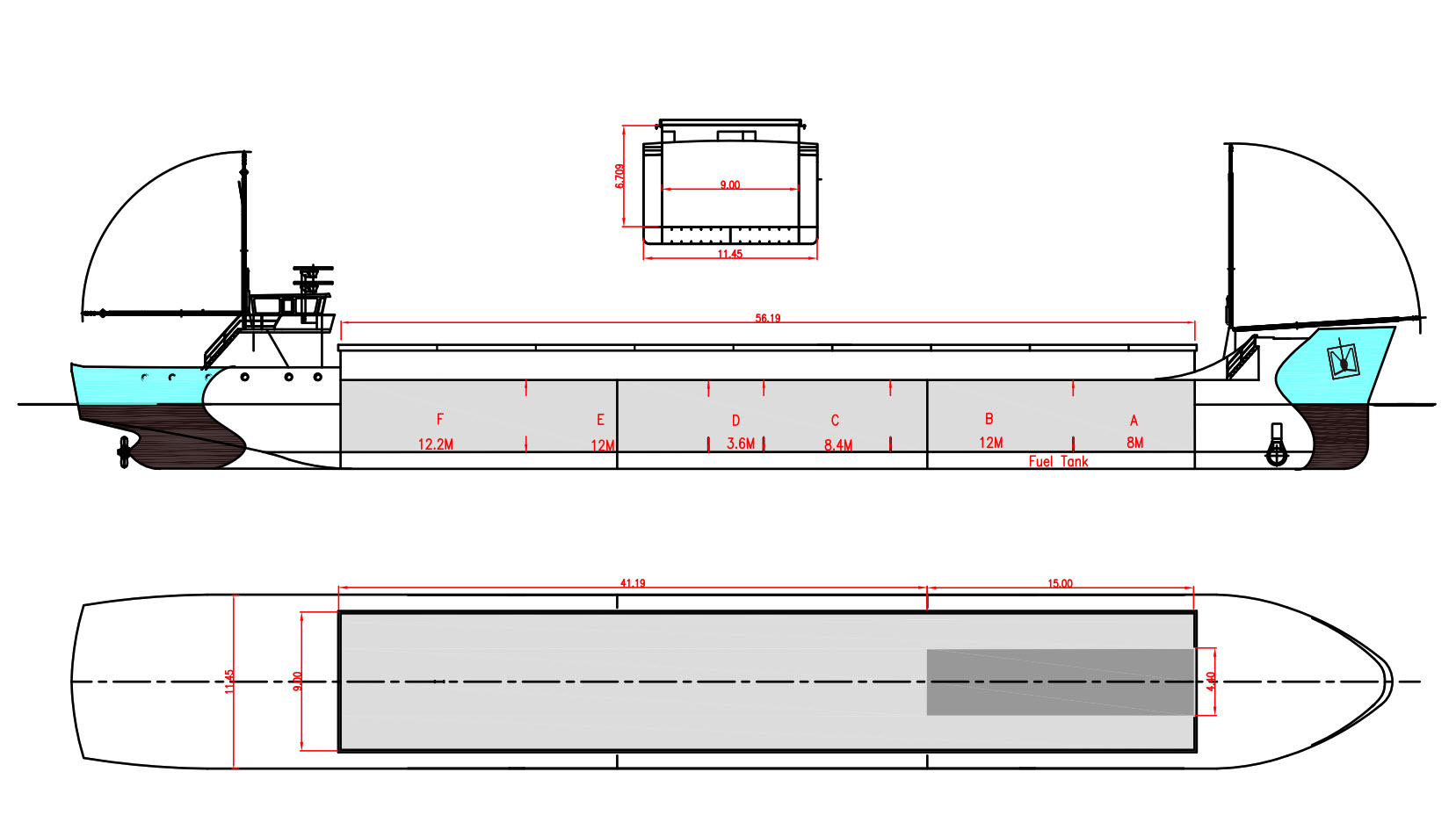

a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm

Hold#	cbm	cbft	cbm	cbft	Hold dimensions
	Bale		Grain
1	3385	119540	3385	119540	56.19 x 9 x 6.7
