Wilson Hansa
23.05.2025
If not otherwise specified:
Dist/Dim in meters
Weights in m.tones
All details given in good faith without any guarantee
- Ex.
- EVA
- IMO No
- 9583859
- Call sign
- LANE8
- Build
- 2013
- Flag
- NIS
- Builders
- Classification
- DNV / 1A General dry cargo ship COAT-PSPC(B) E0 HC(M) LCS Recyclable Strenghtened(IB)
- Length oa
- 89.9
- Breadth mld
- 14.5
- Depth mld
- 7.5
- Draft summer
- 5.77
- Deadweight summer draft
- 4616
- Draft winter
- 5.65
- Deadweight winter draft
- 4471
- Gross tonnage
- 3293
- Net tonnage
- 1662
- Immersion(load draft) TPC
- 11.86
- Mean draft of ship in heavy ballast
- 3.5
- Distance from forward end of No. 1 hatch to aft end of last hatch
- 56.4
- Hatch type
- Pontoon
- Container (TEU) capacity Hold / Deck
- 0 / 0
- Max permissible load on deck/hatch-cover, mt/sqm
- 1.75
- Max permissible load on tanktop, mt/sqm
- 15
- Max air draft - 1
- 23.85
- Max air draft - 2
- 0
- Water ballast capacity
- 1676
- MGO Capacity (Cbm)
- 263
- IFO Capacity (Cbm)
- 0
- Service speed, knots
- 10
- A60
- No
- Bow thruster
- 300 kW, Yes
- Boxed
- Yes
- Open hatch
- Yes
- Rhine fitted
- No
- Ammonium Nitrate fitted
- Yes
- FeSi fitted
- No
- Keel to top antenna fwd/aft
- 24.1 / 27.32
- Keel to top antenna fwd/aft - lowered mast
- 13.2 / 20.5
Remarks:

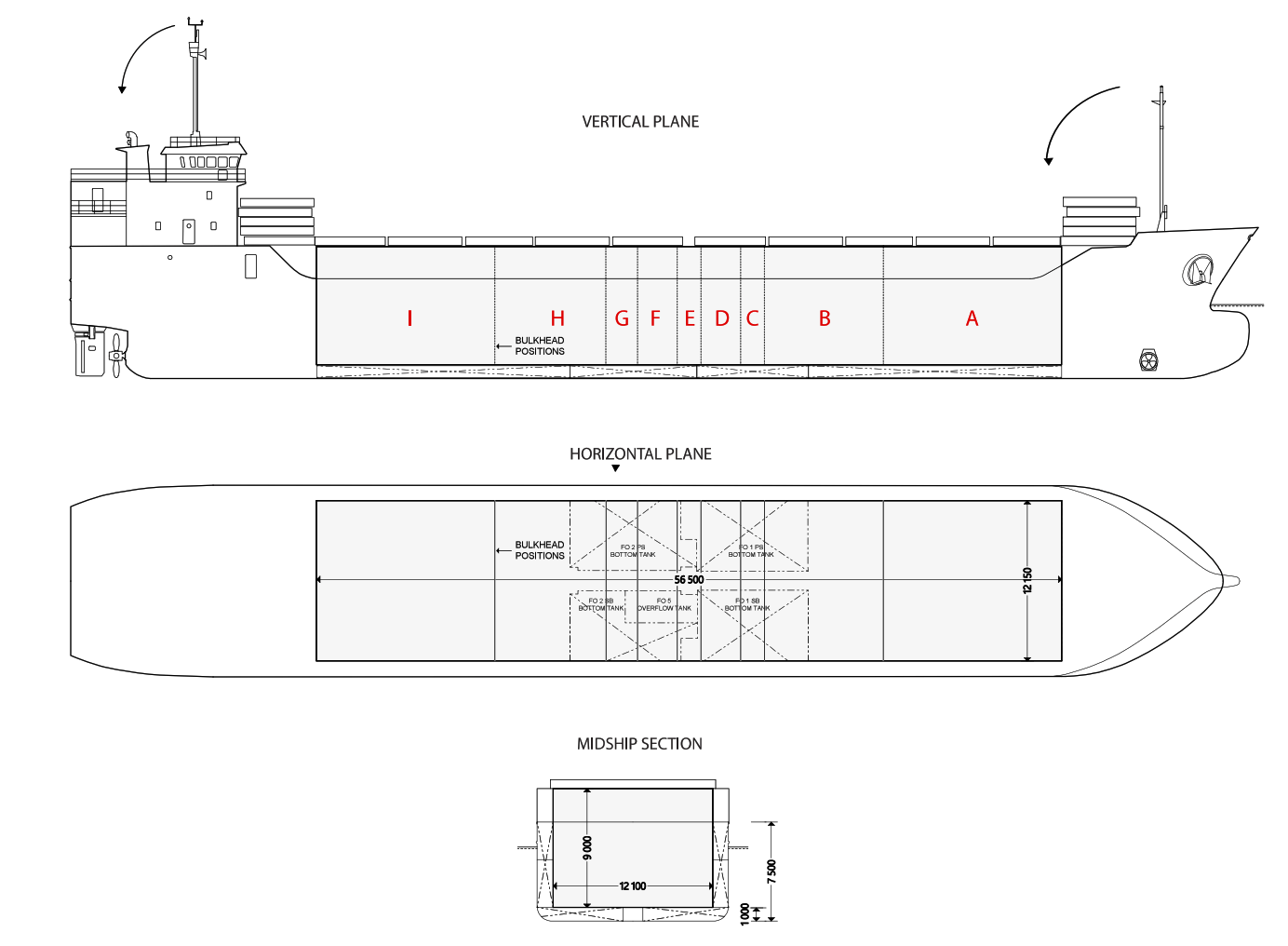

2 cargo holds boxed. FeSi (4.3) for packaged goods only. 1 movable bulkhead in each cargo hold. 3 bulkhead positions in each hold. No A60: Hold 2: Seperation from engine room by tank(s)/void space(s) Forward mast: When lowered the 3 forward hatches cannot be opened.
| Htch# | a | b | c | d | e | f | g |
|---|---|---|---|---|---|---|---|
| 1 | 6.5 | 4.23 | 9.05 | 1.75 | 1.2 | 2.5 | 12.55 x 5.58 |
a : Distance from waterline fully ballasted to top of hatch coamings
b : Distance from waterline fully loaded to top of hatch coamings
c : Distance from tank top to top of hatch coamings
d : Max permissable loading on hatch covers
e : Distance from ship's rail to inside hatch coamings
f : Height of hatch coamings
g : Hatch opening
h : No. of Loadingholes on hatchcovers X diameter in mm
| Bale | Grain | ||||
|---|---|---|---|---|---|
| Hold# | cbm | cbft | cbm | cbft | Hold dimensions |
| 1 | 2939 | 103790 | 2939 | 103790 | 27 x 12.1 x 9.02 |
| 2 | 2939 | 103790 | 2939 | 103790 | 27 x 12.1 x 9.02 |
| Compartments | |||||||
|---|---|---|---|---|---|---|---|
| a | b | c | d | f | g | h | i |
| 1440 | 988 | 196 | 332 | 0 | 0 | 0 | 0 |
| 0 | 0 | 0 | 0 | 332 | 262 | 922 | 1440 |
